Building the "Order Management" Training App : Creating virtual links

Prerequisite : You have a basic understanding of the Simplicité platform, and the steps in "2. Expanding your app" are completed

In Simplicité, a virtual link allows you to access data between business objects without adding a physical column or foreign key. The data is retrieved via an SQL query configured on the virtual link, enabling flexible relationships without altering the database structure...

Learn more

Accessing the list of a Supplier's Clients​

To create a virtual link between the TrnSupplier and TrnClient objects, follow the steps below :

Create and add a non persistent Field to TrnClient​

  1. Open TrnClient's template editor

    For a detailed step-by-step, see Getting started : Create field

  2. Add a new Internal ID field

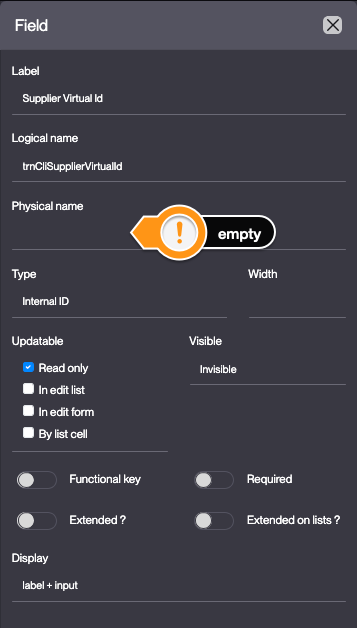

  3. Fill in the Field's information like so :
    • Label : Supplier Virtual Id
    • Logical name : trnCliSupplierVirtualId
    • Physical name : empty
    • Updatable : Read only
    • Visible : Invisible
  4. Click Save
  5. Close the Template editor, click Close
  6. In the Object Fields panel linked to the Business object, open trnCliSupplierVirtualId

    Be sure to open the ObjectField and not the Field

  7. In the Joined object field, type "TrnSupplier" and select the element suggested
  8. Click Save
  9. Fill in the Deletion mandatory field : Do not use
  10. Click Save & Close

  1. In the Business objects > Links menu, open the previously created link

  2. Fill in the Link's information like so :

    • SQL specification :
    t.row_id IN (
       SELECT c.row_id
       FROM trn_client c
       JOIN trn_order o ON o.trn_ord_cli_id = c.row_id
       JOIN trn_product p ON o.trn_ord_prd_id = p.row_id
       JOIN trn_supplier s ON p.trn_prd_sup_id = s.row_id
       WHERE s.row_id = [row_id]
    )

    t is the alias of the child (Client) table [row_id] is the parent (Supplier) record's ROWID

  3. Click Save

  1. In the Object link translation panel linked to the Link, click Create
  2. Fill in the Translation's fields like so :
    • Language : English
    • Translation : Supplier's customers
  3. Click Save & Close
  1. Clear the platform's cache and log in using usertest

    For a detailed step-by-step, see : Testing the User

  2. Open a Supplier
Success

The "Supplier's customers" panel is visible and contains the list of clients that have ordered a Product from the Supplier
