Ajax Library

This lesson is a part of the Frontend Development category, which is meant to guide you through the frontend development within Simplicité. Thus it might be a bit longer and more verbosed than other lessons you will find in the Simplicité Configuration Object category.

This document provides an overview of the Ajax Library, detailing its core methods and functions, while also explaining how the Simplicité solution is structured and operates within the Model-View-Controller (MVC) architecture.

Overview

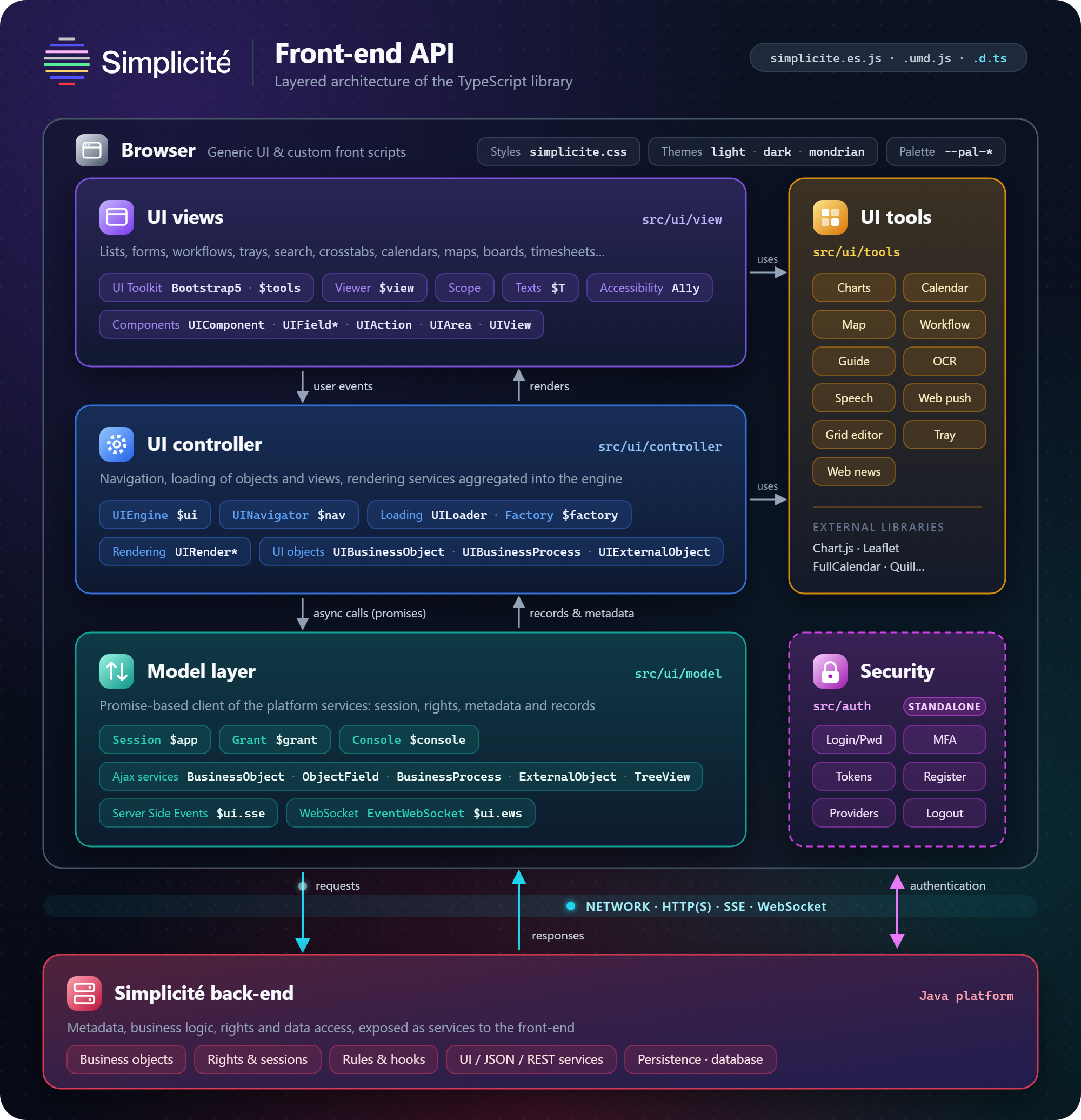

MVC architecture

Simplicité uses the Model-View-Controller (MVC) architecture, which organizes an application into three interconnected components: the Model (handles data and business logic), the View (manages the user interface), and the Controller (coordinates interactions between the Model and View). This separation of concerns enhances modularity, simplifies maintenance, and makes the application more flexible for updates and scaling.

Within your Simplicité's instances and applications, the MVC components are referenced as:

• Controller $ui: Represents the front-end engine instance, Simplicité.UI.Engine. This acts as the primary Controller in the MVC architecture, orchestrating interactions between the Model and View, loading components, and handling the application's core logic.
• Model $ui.getApp() (or $app): Used to access the backend data handler. This is the part of the architecture responsible for managing data retrieval and interaction through the Simplicité.Ajax class.
• View $ui.view.* (or $view): Provides access to and control over the UI components and rendering logic. This layer is responsible for what the user sees and interacts with, utilizing classes under Simplicité.UI.View.* to define and manipulate the user interface.

Model

The Model in the Simplicité solution is responsible for handling the data and business logic of the application. It serves as the backbone of the system, managing interactions with the database and ensuring the integrity of the data. In Simplicité's case, the Model is implemented through the Simplicité.Ajax library, which acts as the bridge between the backend and the front-end. This component ensures that data is retrieved, processed, and delivered in a structured way, providing a consistent foundation for the application’s operations. By centralizing data handling, the Model enables smooth integration with the other layers, fostering a reliable and scalable system.

View

The View is the part of the architecture that manages the user interface and presentation layer. It is implemented using the Simplicité.UI.View.* classes, which handle the rendering and display of UI components. The View translates the data provided by the Model into a user-friendly format, allowing users to interact with the application effortlessly. In Simplicité, this layer is designed to be highly customizable, enabling developers to modify styles and scripts to match specific requirements. By focusing solely on presentation, the View ensures a clear separation of concerns, making it easier to adapt and enhance the user experience.

Controller

The Controller is the central orchestrator of the Simplicité solution, managing the interaction between the Model and the View. It is implemented through the Simplicité.UI.Engine, which acts as the primary UI controller. The Controller loads components, calls the Ajax services to fetch or update data, and ensures that the View accurately reflects the current state of the application. Additionally, it manages navigation, workflows, and other application-specific interactions. This layer provides flexibility and control, allowing developers to implement hooks, override default behaviors, and integrate custom libraries. The Controller’s role is essential for maintaining responsiveness and ensuring smooth communication between the system's layers.

Global

Simplicité allows you to also communicate only with specific parts of it --some like $ui, $app or $view have been quickly explained before-- but there are other that are important to be aware of in order to enhance your capacities with Simplicité's development.

• $ui represents the UI Singleton --of type Simplicite.UI.Engine-- that basically is the Main UI Controller with an abstract view to display components.

• $app represents the Ajax Service --of type Simplicite.Application-- that behaves like the Main Model for your current Simplicité instance/session.

• $view represents the View Engine --of type Simplicite.UI.View-- which is the Main View that must be loaded by the Model in order to access and use display controls. It implements the UI interfaces, and interacts with the Controller to access data.

• $grant represent the User Rights --of type Simplicite.Ajax.Grant-- and allows to access and possibly manipulate the instance through the rights of the current user.

• $nav represents the Navigation Controller --of type Simplicite.UI.Navigator-- thanks to which you can possibly navigate through your Simplicité application through the Navigation tool.

• $root represents the Server Root URL --of type String-- through which you can get and access the static resources of your Simplicité instance/session.

• $tools represents the Bootstrap Tools --of type Simplicite.UI.View-- that allows you to use a bunch of Bootstrap specific methods and workflows (for example BootstrapWebPages for external pages, or bootstrap's specific widgets).

*$T represents the Translated text Shorthand --method taking TEXT <string> and plural <boolean> as parameters-- that allows to quickly translate any given code.

Most of those are also accessible directly from the each other, even tho it is mainly from $ui as it acts as the Controller:

Shortcut	Access through $ui
$app	$ui.app
$view	$ui.view
$grant	$ui.grant (or $app.grant)
$nav	$ui.nav
$tools	$ui.view.tools (or $view.tools)

Accessing Simplicité's session

Through the javascript resource of your external objects, you can easily access every variable and component from your Simplicité's application. Below is a breakdown of some important functions to do so:

Command	Returns	Description
getApp()	Simplicite.Ajax instance	Returns the current Simplicite session (Ajax).
getView(cbk, name, params)	Promise - Result: Object	Loads the view's definition from its name.
getGrant()	Simplicite.Ajax.Grant	Returns the current user's rights & other infos.
getUserInfo(cbk, login, params)	Promise - Result: Object	Returns fewer data about the current user (login, name, email, picture) from his login.
getBusinessObject(obj, inst)	Simplicite.UI.BusinessObject	Gets a new business object, from the name of the object obj and (optional) the instance name inst.

Manipulating Business Objects

As they are a core feature of Simplicité, it is important to understand some of the ways to manipulate them (getting, creating, etc) within your javascript code, for that you can use many methods on the Simplicite.Ajax.BusinessObject class, but below are the most useful ones to acknowledge:

Command	Returns	Description
create(cbk, items, params)	void	Creates and loads a new item that can be customized with params.
getFields()	Array of Simplicite.Ajax.ObjectField	Returns an array of all the object's fields
getField(name, id)	Simplicite.Ajax.ObjectField	Returns the field with name and id from the fields array in the meta-data.
getCount(cbk, filters, params)	integer	Returns the count of rows with the filters to be applied (current ones if absent).
crosstab(cbk, cbt, filters, params)	void	Loads cross table data from the cbt crosstab, for the given filters.
getForCreate(cbk, params)	void	Loads default item (BusinessObject.item) for creation with optional params to adress specific needs.

Note: Getting a new Business Object in your javascript should be done directly using the Simplicite.Ajax.getBusinessObject() function instead of the constructor.

Below is also provided the common architecture for the Business Objects, for you to better understand how they are conceived we give a quick breakdown of their most useful members:

Attribute	Description
count	Current search result count, indicates how much instances of your object are contained in the search.
filters	Current search filters, filters["filterName"] or filters.filterName to access a specific filter's value.
item	Currently loaded item, this is often used to refer a specific instance of your Business Object, either for creation or any update actions.
list	Current search result array of items, usually contains all the instances of your object.
metadata	Current meta data: name is the object name, instance is the object instance name, fields is the fields' definition array, ...

Reminder: Always perform manipulations of your Business Objects within a search() method in order to ensure you correctyl are accessing and manipulating your objects with all the needed data.

When using any instance of your Business Object, note that you can access the value of any field simply calling the name of it, indeed as instances are typed as [object Object], if you want to access a field labeled fieldName from your Business Object instance named obj, then you just have to use let objfField = obj.fieldName and thus objField won't be of type ObjectField but of the actual value type (string, int, ...).

Displaying Specific Elements

Within the WORK part of SImplicité's UI are displayable mutliple items when navigating the solution, below is a list of functions that can be used to display specific elements in the area

Command	Returns	Description
displayForm(ctn, obj, p, cbk)	void	Front hook displaying the form of the obj with specified p parameters, optional callback cbk and container ctn.
displayList(ctn, obj, p, cbk)	void	Front hook displaying the list of the obj with specified p parameters, optional callback cbk and container ctn.
displaySearch(ctn, obj, p, cbk)	void	Front hook displaying the search form of the obj with specified p parameters, optional callback cbk and container ctn.
